Bendpak HDS18E

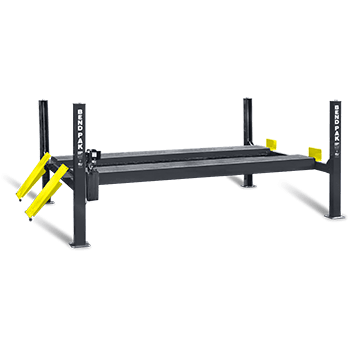

Bendpak HDS-18E



Alternative Views:


List Price: $26,000.00
Our Price: $22,000.00
Sale Price: $20,300.00
Save $5,700.00!


Availability:: CALL FOR AVAILABILITY
Product Code: BENDPAK-LIFT-HDS-18EA-18
Qty:

Description TechnicalSpecs Warranty


Incredible Truck Lift for Heavy-Duty Lifting

BendPak's HDS-18E four-post lift is engineered to make light work out of heavy lifting. It’s built to last and features upgrades that increase safety, durability and productivity. This is the lift that graduates from the class of mid-size trucks, vans and SUVs up to heavy-duty applications. This is a professional car lift that can even handle some industrial and farming equipment. It’s also lighter-duty than other lifts in the truck-weight category, so it’s not overkill when you don’t need, for instance, 20 tons of lift capacity when 9 tons will do just fine.

Extended runways

To accommodate long wheelbases, the HDS-18E offers extended runways that are 263" front-to-back. This is the first of the heavy-duty models to offer extended runways. All 27K, 35K and 40K lifts are built this way. Better-gripping runways ensure the massive tires on your massive vehicles stay put. If the runways gets slick, their treaded surfaces are still able to grab the wheels without damaging or marring them.

Large base plates

12" x 12" base plates don’t just provide a solid foundation, they inspire the confidence to work on virtually any-size vehicle up to the rated weight capacity.

Dual-hub cable sheaves

Supersized 12" diameter cable sheaves within the runway and cross tubes, combined with massive 4" diameter sheave axles, dramatically improve cable wear and critical component lifespan, meaning this car lift increases your safety, so you spend less money in service-related expenses down the road.

Heavy-duty aircraft cable

The HDS-18E four-post lift features four galvanized lifting cables that do an excellent job of providing abrasion resistance and preventing fatigue.

Built-in lubrication

Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.

Spring-loaded safety locks

Spring-loaded safety locks automatically engage continuously during rise, and adjustable safety ladders allow for precise runway leveling, even if the posts have been installed on slightly sloped floors.

Push-button pneumatic lock release

A simple push-button pneumatic lock release makes lowering operations simple and fast. Aircraft-quality stainless steel and aluminum pneumatic cylinders will provide years of trouble-free service.

Secondary lock system

A secondary lock system is on constant guard and acts as a slack-cable device in the unlikely event of an unexpected cable failure. Only consider a four-post lift that offers this secondary lock system.

Integrated design

Lifting cables, airlines, safety latches and sheaves are all fully enclosed within the structure.

Adjustable height locking positions

Features adjustable locking positions for variable-height parking and infinite leveling.

Electric-hydraulic power system

A maintenance-free electric-hydraulic power system assures ultimate dependability. Despite its size and lifting capacity, all controls on the HDS-18E four-post lift are conveniently located within easy reach.

Optional rolling bridge jack (two makes a set)

Rolling jacks are used to raise the front or rear portion of a vehicle off the car lift’s runways, allowing operators to perform efficient wheel and brake service. A pair of jacks allows the entire vehicle to be elevated. Each jack has telescoping arms and frame contact pads that can be extended over the runways and positioned under vehicle lifting points. Each jack features three safety-lock positions and stackable truck and van adapters for increased lifting height and better access to frame contact points on high ground-clearance vehicles. The jacks come equipped with a commercial-grade air-hydraulic pump.

Features and Comparison
    • 18,000-lb lifting capacity
    • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
    • Supersized 12" diameter cable sheaves
    • Galvanized lifting cables
    • Grease nipples
    • Single hydraulic under-runway cylinder
    • Integrated flow restrictor
    • Durable powder coat
    • Spring-loaded safety locks
    • Second lock system on constant guard
    • Fully enclosed lifting cables
    • Multiple adjustable height locking positions
    • Maintenance-free electric hydraulic power system
    • Conveniently positioned operator controls
    • 12" x 12" base plates
    • Optional rolling jacks
