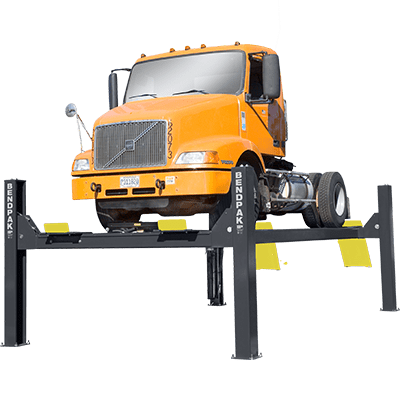

Bendpak HDS-40X

0 Reviews
List Price: $42,000.00
$36,000.00
$34,595.00
Save $7,405.00!
Product Code: Bendpak-HDS40X
CALL FOR AVAILABILITY
This product qualifies for FREE SHIPPING!

Description

BendPak's Strongest and Longest Beast of Burden

40,000 lbs. take a lot of muscle to lift, and many vehicles of this caliber are longer than our standard-length series of four-post lifts can accommodate. If you want to be prepared for the longest and heaviest vehicles on the road, you need BendPak's most impressive offering—and this is undoubtedly it. With runways that measure in at a whopping 310”, the HDS-40X is the heaviest-duty extended-length car lift we make. Slap a bus on it and get to work, no sweat.

The power of this lift is no light matter. Military contractors, government entities on all levels and large commercial truck repair companies have all sought this lift out, knowing there's nothing they can throw at it that it can't handle. Far from being a hobby lift, this industrial-grade powerhouse is only going to fit in serious-minded commercial maintenance spaces. You'll need a big bay with high ceilings, and if you have that, the HDS-40X doubles as a parking lift and ultra-safe storage space.

Features and Comparison

  • 40,000-lb. lifting capacity
  • Supersized 12" diameter cable sheaves
  • Galvanized lifting cables
  • Extended length runways
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Runways feature a durable matte finish
  • Optional rolling jacks

TechnicalSpecs


HDS-40X specs diagram

Capacity

Lifting Capacity*
40,000 lbs. (18,144 kg)
*Max Capacity / Front Axle
20,000 lbs. (9,072 kg)
*Max Capacity / Rear Axle
20,000 lbs. (9,072 kg)

Rise

A - Min. Runway Height:
8.5" (216 mm)
B - Max. Rise:
60" (1,524 mm)
C - Max. Lifting Height:
68.5" (1,740 mm)
Time to Full Rise:
75 seconds

Outside Dimensions

D - Overall Width:
154" (3,912 mm)
E - Outside Length:
317" (8,052 mm)
F - Overall Length:
373.5" (9,487 mm)
G - Height of Columns:
93" (2,362 mm)

Inside Dimensions

H - Width Between Columns:
134" (3,404 mm)
I - Drive-Thru Clearance:
109" (2,769 mm)

Runways

J - Runway Width:
28" (711 mm)
K - Length of Runways:
310" (7,874 mm)
L - Width Between Runways:
36" (914 mm) or 47" (1,194 mm)
M - Runway Centerline:
64" (1,626 mm) or 75" (1,905 mm)
N - Outside Edge of Runways:
92" (2,337 mm) or 103" (2,616 mm)

Minimum Wheelbase

Rated Capacity:
230" (5,842 mm)
75% Capacity:
195" (4,953 mm)
50% Capacity:
165" (4,191 mm)
25% Capacity:
130" (3,302 mm)

Locking

Locking Positions:
9
Lock Spacing:
Every 6" (152 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
7,563-lbs. (3,430 kg)
Dimensions:
324'' x 31'' x 36'' (8,229 mm x 787 mm x 914 mm)

Warranty

One year Limited warranty
