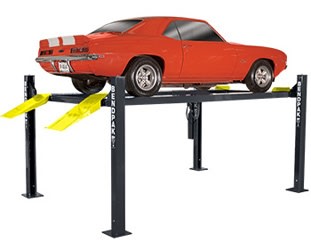

Bendpak HD-9ST

0 Reviews
List Price: $5,499.00
$5,200.00
$5,095.00
Save $404.00!
Product Code: Bendpak-LIFT-HD-9ST-12
CALL FOR AVAILABILITY
This product qualifies for FREE SHIPPING!

Description

A Slim, Safe and Certified Lift

Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.

A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 88” high, so it’s low-profile too. The runways raise to a max height of 75”, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 6-feet tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series.

The HD-9ST may be smaller, but it’s not weaker than other designs, nor is it a hobby lift. In fact, this car lift is fully ALI certified. It’s used every day in professional shops around the world, and many motorists prefer it to the standard-length HD-9 simply because it leaves more room in their garage for tools and equipment.

Features and Comparison

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Two different ramp lengths to choose from
  • Narrow width for space efficiency
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved

TechnicalSpecs

Capacity

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height:
4.5" (114 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
74.5" (1,892 mm)
Time to Full Rise:
45 seconds

Outside Dimensions

D - Overall Width:
100.25" (2,546 mm)
E - Outside Length:
174" (4,420 mm)
F - Overall Length:
200" (5,080 mm)
G - Height of Columns:
88" (2,235 mm)

Inside Dimensions

H - Width Between Columns:
89.75" (2,280 mm)
I - Drive-Thru Clearance:
76.5" (1,943 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
164" (4,166 mm)
L - Width Between Runways:
37.5" (953 mm)
M - Runway Centerline:
56.5" (1,435 mm)
N - Outside Edge of Runways:
75.5" (1,918 mm)

Minimum Wheelbase

Rated Capacity:
115" (2,921 mm)
75% Capacity:
100" (2,540 mm)
50% Capacity:
85" (2,159 mm)
25% Capacity:
70" (1,778 mm)

Locking

Locking Positions:
12
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1Ph
Noise:
45 dB

Shipping

Weight:
1,630 lbs. (739.4 kg)
Dimensions:
180" x 22" x 40" (4,572 mm x 559 mm x 1,016 mm)

Warranty

One year limited warranty
