Belaire 318HN

0 Reviews

List Price: $2,760.00

$2,590.00

$2,620.00

Save $140.00!

Product Code: Belaire--318HN-5HP-2

CALL FOR AVAILABILITY

This product qualifies for FREE SHIPPING!

Qty:

Description

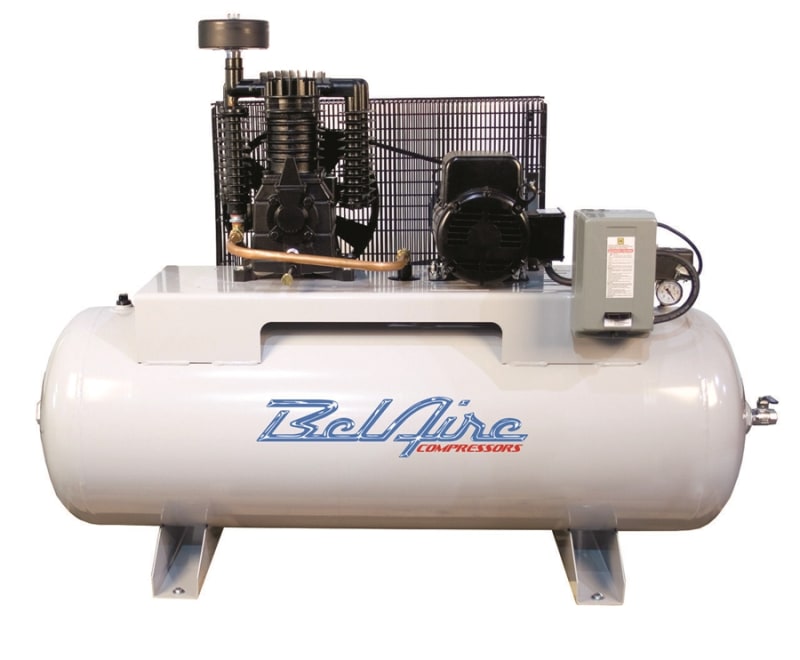

BelAire 318HN 5 HP 80H Gal. Two Stage Single Phase Electric Reciprocating Air Compressor. No Magnetic Starter Required. This compressor comes complete with everything you need to optimize your work and minimize down time.

Features and Comparison

5HP 208-230 Volt Single Phase
No Magnetic Starter Required
18.5 CFM @ 100 psi
16.6 CFM @ 175 psi
175 psi Max Pressure
Solid Cast Iron Cylinder
Thermal Protection on Motor
Recommended Breaker Size - 40 amp
80 Gallon Horizontal ASME/CRN Tank
High Flow Belt Guard
2 Year Bumper to Bumper Warranty

TechnicalSpecs

Model:	318HN
Brand:	BelAire
Part Number	8090250012
Horsepower:	5 HP
Voltage:	208-230 AC
Phase:	1-Phase
Recommended Breaker:	40 Amp Breaker
CFM @ 90 PSI:	18.5
CFM @ 175 PSI:	16.6
Max PSI:	175 PSI
Pump Type:	Two-Stage
Pump Drive:	Belt Drive
Oil Type:	Oil Lubricated
Oil System:	Splash Lubricated
Low Oil Shut-off:	No
Oil Sight Glass:	Yes
After Cooler:	Yes
Tank Size:	80 Gallons
Tank Outlet:	3/4 Inch
Tank Orientation:	Horizontal
Dimensions:	71L x 24W x 49H in.
Product Weight:	468 lbs
