Challenger- 4P14XFX Series
Challenger- 4P14XFX Series - Image 1 of 0
Challenger- 4P14XFX Series - Image 2 of 0
Challenger- 4P14XFX Series - Image 3 of 0
Challenger- 4P14XFX Series - Image 1 of 0
Challenger- 4P14XFX Series - Image 2 of 0
Challenger- 4P14XFX Series - Image 3 of 0
Challenger- 4P14XFX Series - Image 4 of 0
Challenger- 4P14XFX Series - Image 1 of 0
Challenger- 4P14XFX Series - Image 2 of 0
Challenger- 4P14XFX Series - Image 3 of 0
Challenger- 4P14XFX Series - Image 4 of 0
Challenger- 4P14XFX Series - Image 5 of 0

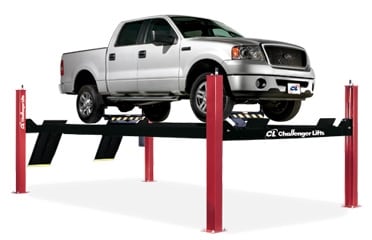

Challenger- 4P14XFX

0 Reviews
List Price: $15,885.00 Contact us for best deal
$9,942.63 Contact us for best deal
$9,239.54
Save $6,645.46!
Product Code: Challenger-4P14XFX-Series
CALL FOR AVAILABILITY
This product qualifies for FREE SHIPPING!

Description

Challenger Lifts’ 14,000 lb. capacity 4P12EFX and 4P12XFX economy four post lifts are loaded with features you would expect to pay more for, like louvered approach ramps, solid piece column construction, automatic wheel stops and the highest rise in the industry.
With optional rolling jacks, oil drain pan, etc., you’ll be able to accommodate just about anything that comes in for service and afford room to grow with its reasonable cost. Turn your 4P12 general service four post automotive lift into a wheel alignment capable alignment rack. Our optional bolt-on alignment kit with stainless steel turning radius gauges

Features and Comparison

  • 78” rise height provides more working room underneath vehicles
  • Louvered approach ramps for positive vehicle traction
  • Solid piece column construction provides rigidity and stability for rigorous servicing needs
  • Oversized solid machined steel pulleys for prolonged pulley and cable life
  • Adjustable runways to accommodate a variety of tread widths
  • Hydraulic cylinder mounted underneath runway
  • 14 level locking positions for a variety of general service tasks
  • Optional bolt on alignment kit converts general service application into alignment rack
  • Many accessories available such as air/electric workstation, rolling jacks and oil drain pan make Challenger 4-posts a complete productivity center

TechnicalSpecs

Model

4P12EFX
4P12XFX

Lift Capacity

14,000 lbs. (5443kg)
Max. Wheelbase1
182-1/2" (4636mm)
210" (5334mm)
A Rise Height
78" (1981mm)
B Length Overall
20' 4-1/2" (6210mm)
22' 8" (6909mm)
C Width Overall
10' 10-3/4" (3321mm)
D Inside Columns
116" (2946mm)
E Between Columns
196" (4978mm)
223-1/2" (5677mm)
F Height of Columns
90-1/2" (2299mm)
G Width of Runways
20" (508mm)
H Height of Runways
7" (178mm)
I Width Between Runways
Min. 40" / Max. 43"
(1016mm / 1092mm)
Air Supply Required
85 -115 psi
Motor
2HP
Voltage2
208v - 230v
Speed of Rise
70 seconds
Min. Recommended Bay Size
12' x 24' (3658mm x 7315mm)
12' x 26' (3658mm x 7315mm)
Shipping Weight
2260 lbs. (1025 kg)
2390 lbs. (1084 kg)

Warranty

Limited Warranty
